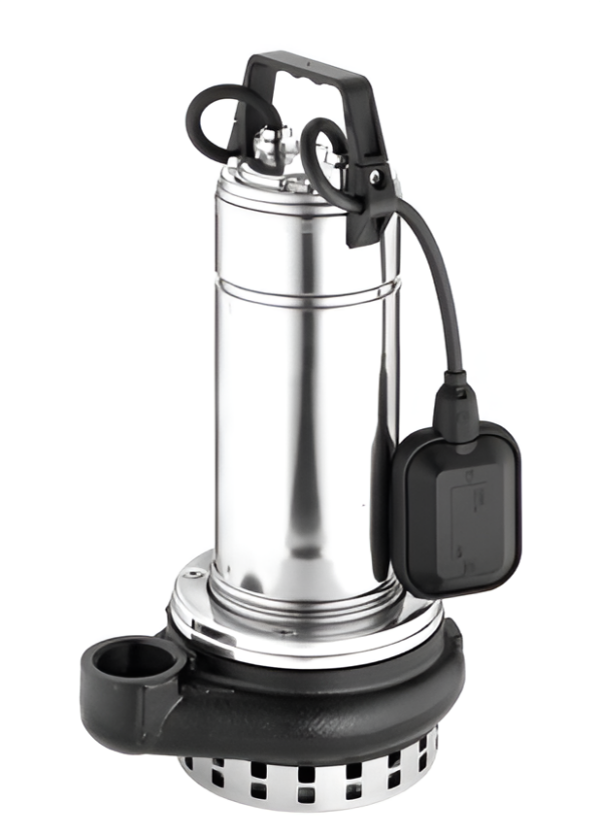

EGN Series

Submersible Drainage Pumps for Clean Water

Construction

• Single-impeller submersible drainage pump, with open impeller with vertical threaded delivery port (G 1 1/2)
• Double mechanical shaft seal with interposed oil chamber, to protect against dry-running

Applications

• For clean containing solids up to 10 mm grain size
• For draining rooms or or emptying tanks
• Extraction of water from ponds, streams or pits and for rainwater collection

Operating Conditions

• Liquid temperature: up to 35 °C
• Maximum immersion depth: 5 m
• Minimum immersion depth: 205 mm
• Continuous duty (with submerged motor)
